Air change rate chamber UFACR/UFACRplus - D

Accelerated ageing, hot air ageing, artificial ageing of plastics, rubber, rubber compounds and elastomers

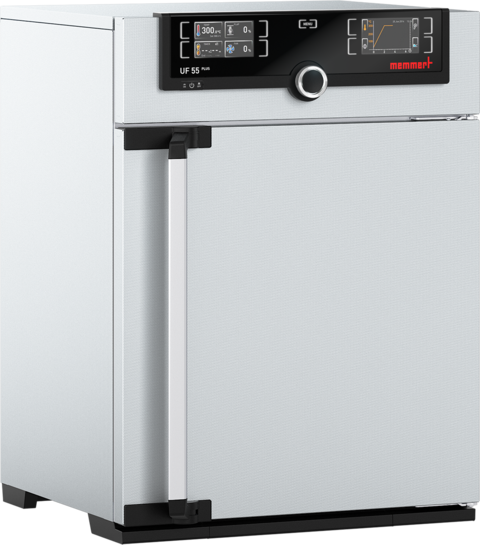

Universal oven heating and drying with forced air circulation (fan) TwinDISPLAY UF55plus 585 x 784 x 514 mm

Standard-compliant ageing

Optimised for DIN 53508 and ISO 188-compliant ageing – ideal for quality assurance testing in the field of plastics materials testing.

Targeted air flow

Standard-compliant air exchange rate and flow velocity with low temperature deviation.

Precise measurement data log

Automatic recording of e.g. temperature, fan speed, air damper position and error logs – for reproducible measurement results.

UFACR – Ageing of plastics with targeted air exchange rate and air flow

With the UFACR air change rate chamber, the m360 Select Series features ageing chambers in accordance with DIN 53508 and ISO 188. Size 55 is ideal for standard-compliant storage and ageing of plastic test specimens with precise and uniform temperature distribution.

Temperature range: up to +300°C
1 Model size (29 litres usable volume)
2 Model variants: SingleDISPLAY and TwinDISPLAY
Power consumption max. 2000W
With calibration certificate for temperature and air velocity
Device according to Method D

Send inquiry
Choose model

Product overview

The UFACR was specifically designed for materials testing that requires defined air exchange and flow rates at various temperature levels. This allows for simulation of accelerated ageing of plastics, polymers, rubber, and elastomers. The device is virtually maintenance-free in continuous operation and records the operating parameters continuously and fully automated. It can also be integrated into an existing laboratory network.

Key Benefits

✔ Intuitive and easy-to-use operating menu
✔ Temperature and air exchange ramps programmable via AtmoControl software (models with TwinDISPLAY)
✔ Almost exclusive use of high-quality, corrosion-resistant and easily cleanable stainless steel for the working chamber (hier fände ich inner surfaces aber besser) and housing
✔ Heating concept specifically adapted for a precise and homogenous temperature control

Standard units are safety-approved and bear the test marks

	Description	Air Circulation	Performance Class
	UF55ACR-D	Forced air circulation (Fan)	SingleDISPLAY	Details
	UF55ACR-Dplus	Forced air circulation (Fan)	TwinDISPLAY	Details
