Products

CO2 Incubator ICOmed

Safety at all times.

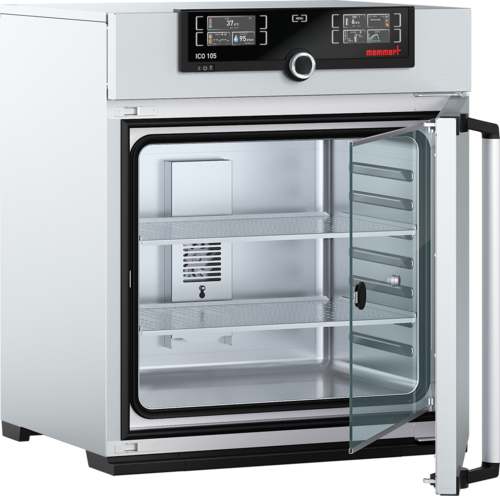

CO2 Incubator for the protection of cell cultures, bacteria cultures or tissue cultures ICO105 719 x 850 x 591 mm
Medical Device CE 0197

Incubation of cell cultures, bacteria cultures or tissue cultures
CO2 Incubator ICOmed

The control system of the Memmert CO2 incubator ICOmed is so finely tuned that the appliance reaches the setpoint temperature very quickly and without temperature overshoots. Alarm notifications to your mobile phone guarantee the safety of the chamber load, and the battery-buffered ControlCOCKPIT ensures continuous CO2 control even when there is a power failure. Ideal hygiene is a given too: rounded edges enable easy and thorough cleaning, the interior can be sterilised within 60 minutes at 180 °C.
  • 4 model sizes (with a chamber volume of 56 to 241 litres)
  • Temperature range +18 °C to +50 °C
  • Setting range CO2 0 to 20 % CO2
  • Setting range 02 1 to 20 % O2
  • Setting range active humidity control (with option K7) 40 to 97 and rh-off
  • Fail-safe, FDA-compliant logging of temperature, CO2, O2 humidity, open door time data
  • Battery-buffered ControlCOCKPIT: The operating display, logging and CO2 control are fully functional even during a power failure
  • Visual and acoustic alarm as well as alarm notification to mobile phones if the individually adjustable temperature, CO2, O2, or humidity ranges are exceeded
  • Active humidity control
  • The interior chamber, including all installations and sensors, can be sterilised at +180 °C in a 60-minute programme

Intended use of ICOmed as medical device

Especially for in-vitro fertilization, the precision and reliability of the CO2 incubator are of crucial importance as the slightest deviation in the CO2 atmosphere, temperature or humidity content during cultivation can already affect cell development.
Memmert subjected its CO2 incubator ICOmed to a comprehensive medical device evaluation. Each Memmert CO2 incubator ICOmed is classified as a Class IIa medical device for the in vitro fertilisation (IVF) as well as biosynthesis.
Memmert is bringing medical devices of class IIa into circulation according to MDD 93/42/EEC until 26 May 2024 according to the transitional provisions by the (EU) 2017/745 article 120 (2). The CE label on the appliances includes the mark 0197, denoting TRLP – TÜV Rheinland as the notified body.

A Memmert CO2 incubator offers unique advantages

  • User-friendly, intuitive operating concept
  • Almost exclusive use of high-quality, corrosion-resistant and easily cleanable stainless steel for the inner chamber and housing
  • Precise and homogenous temperature control thanks to a product-specific heating concept
  • A wide range of options for reading the data logging using interfaces, integrated data loggers and the AtmoCONTROL software
  • 3 years guarantee worldwide

Minimising vaporisation and condensation

Active humidity control ensures short recovery times after the door has been opened and minimises vaporisation in the interior. Together with the heating of the interior from all six sides and the heated inner glass door, it offers maximum protection for cell and tissue cultures and avoids the dangerous formation of condensation. The turbulence-free chamber ventilation ensures a constant and uniform atmosphere.

Unrivalled user friendliness

All parameters can be set easily and intuitively both with the operating display and the ControlCOCKPIT or the AtmoCONTROL software. The shutter box can be opened, allowing fast access to controls. Maintenance is possible even if the appliances are stacked. The incubator ICOmed has USB and Ethernet connections as well as a data logger with a ten-year storage capacity. Data can be read and programmes can be uploaded by remote access. Numerous features of the CO2 incubator ICOmed don’t let anything open to be desired:

  • Two gas connections with quick release connectors for automatic switch-over of gas bottles
  • Electropolished, seamlessly welded chamber
  • Electronic control for active humidification and dehumidification (40 to 97 % rh)
  • Control of oxygen concentration by introducing nitrogen, adjustment range from 1 % to 20 % O2

Would you like to know more about the CO2 incubator ICOmed? In our webinar area, you will find the recording about the product presentation.

Standard units are safety-approved and bear the test marks

CE LGA
VDE
UL

Intended use as medical device

Memmert is bringing medical devices of class I according to EU Directive (EU) 2017/745 into circulation.

Type Intended use as medical device Classification according to (EU) 2017/745
UNmplus, UFmplus The appliance may be used for heating fango, silicate and APS packs for physical therapy and keeping them warm. I
UNm, UFm, INm, IFm The appliance may be used for heating fango, silicate and APS packs for physical therapy and keeping them warm. I
INmplus, IFmplus Im may be used for heating fango, silicate and APS packs for physical therapy and keeping them warm. Implus may be used for temperature control of rinsing and infusion solutions and contrast agents. I
IFbw The appliance is used to heat non-sterile cloths and covers. Any other use is improper
and may cause damage or danger.
I

Memmert is bringing medical devices of class IIa and IIb into circulation according to MDD 93/42/EEC until 31.12.2028 according to the transitional provisions (EU) 2023/607 by the (EU) 2017/745 article 120 (2).

Type Intended use as medical device Classification according to 93/42/EWG
SNplus, SFplus The product is intended for the sterilisation of medical devices with dry heat at atmospheric pressure. IIb
SN, SF The product is intended for the sterilisation of medical devices with dry heat at atmospheric pressure. IIb
ICOmed The CO2 incubator ICOmed is used to generate and maintain constant ambient conditions for the in-vitro fertilisation (IVF) application field, especially for the incubation of oocytes, spermatozoa and zygotes in special culture dishes for IVF application as well as for gene expression and the biosynthesis of RNA and proteins. IIa

Download as pdf

Medical device consultant training

As part of our medical device consultant training, we qualify you in the consultation, use and instruction of our medical products, taking into account the currently applicable legal requirements with regard to the new Medical Devices Regulation (EU) 2017/745. We explain the requirements for dealers, the geographical scope as well as information on the reporting system and the tasks of a medical device consultant. After successful participation, you will receive a certificate of qualification as a medical device consultant for Memmert medical devices.

Have we piqued your interest? Please contact us at sales@memmert.com for more information.
