Options / Accessories / Services

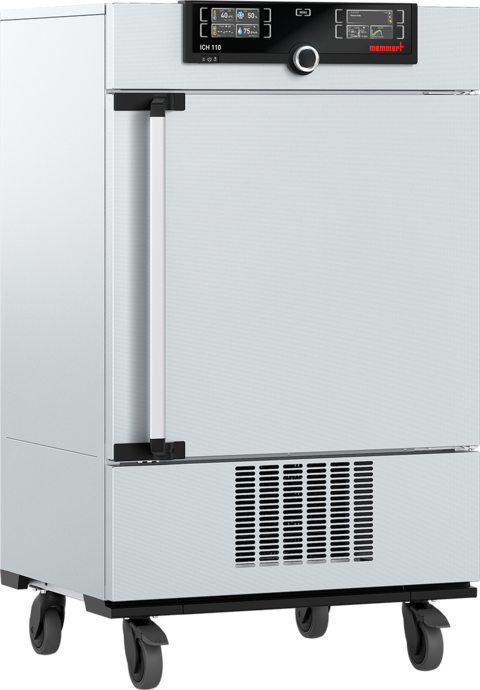

for Climate chamber
Unparalleled homogeneity of temperature and humidity. For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP – GCCP.
Options
| Model sizes | 110 | 260 | 750 | |
|---|---|---|---|---|
| Voltage 115 V, 50/60 Hz | X2 | X2 | X2 | |
| Chamber modification for the application of reinforced perforated stainless steel shelves or stainless steel grids (bearing rails mounted in the working chamber) - includes replacement of standard grids by reinforced grids (ICHeco/ICH only) | K1 | |||
| Illumination unit (has to be ordered together with the chamber) consisting of 4 fluorescent lights with cold white light and 2 UV lamps according ICH Q1B, option 2, separately switchable via controller (only ICHLeco/ICHL) second box | T72 | T72 | ||
| Alternative light boxes (replace the standard lighting; have to be ordered together with the chamber); number of fluorescent lamps: size 110: 5, sizes 260/750: 6, with cold white light according to ICH guideline Q1B, option 2 (only ICHLeco/ICHL); one box | T81 | T81 | T81 | |
| Alternative light boxes (replace the standard lighting; have to be ordered together with the chamber); number of fluorescent lamps: size 110: 5, sizes 260/750: 6, with cold white light according to ICH guideline Q1B, option 2 (only ICHLeco/ICHL); second box (cannot be switched on separately) | T82 | T82 | ||
| Alternative light boxes (replace the standard lighting; have to be ordered together with the chamber); number of fluorescent UV lamps: size 110: 5, sizes 260/750: 6, with UV-A radiation according to ICH guideline Q1B, option 2 (only ICHLeco/ICHL); one box, no extra cost | T01 | T01 | T01 | |
| Alternative light boxes (replace the standard lighting; have to be ordered together with the chamber); number of fluorescent UV lamps: size 110: 5, sizes 260/750: 6, with UV-A radiation according to ICH guideline Q1B, option 2 (only ICHLeco/ICHL); second box, cannot be switched on seperately | T02 | T02 | ||
| Interior socket, ampacity 230V/2, 2A/500W, can be switched off with the On/Off switch, cannot be switched individually, moisture tight IP68 (not for ICH110Leco/ICH110L) | R3 | R3 | R3 | |
|
Entry port, 23 mm clear diameter, for introducing connections at the side, moisture tight, can be closed by flap and silicone stopper, standard position left centre/centre | F0 | F0 | F0 |
|
Entry port, 23 mm clear diameter, for introducing connections at the side, moisture tight, can be closed by flap and silicone stopper, standard position left centre top | F1 | F1 | F1 |
|
Entry port, 23 mm clear diameter, for introducing connections at the side, moisture tight, can be closed by flap and silicone stopper, standard position right centre top | F3 | F3 | |
| Entry port (silicone), 40 mm clear diameter, for introducing connections, moisture tight, can be closed by silicone stopper, at the back (please, state location) Not for models ICHLeco/ICHL | F7 | F7 | ||
| 4 to 20 mA current loop interface, temperature controller actual value (-20 to +70 °C = 4 - 20 mA) | V3 | V3 | V3 | |
| 4 to 20 mA current loop interface, temperature of a Pt100 sensor positioned flexibly in chamber for external temperature monitoring (max. 3) - price per sensor (-20 to +70 °C = 4 - 20 mA) | V6 | V6 | V6 | |
| 4 to 20 mA current loop interface, humidity controller, actual value (0 to 100 % rh = 4 - 20 mA) | V7 | V7 | V7 | |
| Fan speed monitoring with switching off the heating and with alarm in case of failure | V4 | V4 | V4 | |
| Compressed air dehumidification (efficient dehumidification of the interior by means of compressed air – for models ICH and ICHL). Standard works calibration certificate (measuring point chamber centre) at +10 °C with 10 % rh. | C9 | C9 | C9 | |
|
Door with lock and key (safety lock) | B6 | B6 | B6 |
|
Potential-free contact for combination error message (e.g. supply failure, sensor fault, fuse) | H6 | H6 | H6 |
| Door-open-recognition, shuts down humidity, light and CO2 (standard with ICHLeco/ICHL) | V5 | V5 | V5 | |
| MobileALERT, notification by SMS in case of any error or alarm of the device (Requires option H6) | C3 | C3 | C3 |
Accessories
| Model sizes | 110 | 260 | 750 | |
|---|---|---|---|---|
|
Stainless steel grids, electropolished | E20165 | E28891 | E20182 |
| Reinforced stainless steel grid, electropolished, max. loading 60 kg (model 750 with guide bars and fixing screws and only in connection with option K1) Please consider max. loading of chamber | E29767 | E29766 | B32190 | |
| Perforated stainless steel shelves | B00325 | B29725 | B00328 | |
|
Reinforced perforated stainless steel shelves, max. loading 60 kg, with guide bars and fixing screws and only in connection with option K1. Please consider max. loading of chamber | B32191 | ||
| Stainless steel slide-in drip tray, 15 mm rim (may affect the temperature distribution) - cannot be used in connection with option K1 | B02073 | B29726 | B02075 | |
| Stainless steel slide-in drip tray, 15 mm rim, with guide bars and fixing screws (may affect the temperature distribution) - can be used only in connection with option K1 | B32763 | |||
| Max. loading per slide-in drip tray (kg) | 3 | 4 | 8 | |
| Stainless steel bottom drip tray, 15 mm rim (may affect the temperature distribution) - cannot be used in connection with option K1 | B04359 | B29722 | B04362 | |
| Stainless steel bottom drip tray, 15 mm rim (may affect the temperature distribution) - can be used only in connection with option K1 | B34055 | |||
| Max. loading per bottom drip tray (kg) | 3 | 4 | 8 | |
| Holder for water tank (2.5 litres) for mounting on the rear of the appliance. Standard equipment for size 750 | E32172 | E32172 | ||
| Central water supply with filter cartridges for connection to the domestic water supply. Product information on demand. | ZWVR6 | ZWVR6 | ZWVR6 | |
| Central water supply without filter cartridges for connection to the domestic water supply (only for demineralised water with a conductivity of 5 to 10 μS/cm and a pH value between 5 and 7). Product information on demand | ZWVR7 | ZWVR7 | ZWVR7 | |
| USB-Ethernet adapter | E06192 | E06192 | E06192 | |
| Ethernet connection cable 5 m for computer interface | E06189 | E06189 | E06189 | |
| USB User-ID stick (with User-ID licence): Oven-linked authorisation licence (User-ID-programme) on Memory-stick, prevents undesired manipulation by unauthorised third parties. When reordering please specify serial number (only for units with TwinDISPLAY) | B33170 | B33170 | B33170 | |
| Basic license for „AtmoCONTROL FDA Edition“. Meets the requirements for the use of electronically stored records and electronic signatures as specified in the 21 CFR Part 11 regulation by the US Food and Drug Administration (FDA). For devices with TwinDISPLAY only. Respective IQ/OQ documents available in German and English (at no extra charge). | FDAQ1 | FDAQ1 | FDAQ1 | |
| Integration of one additional unit (up to max. 31 units) into an already existent FDA-software licence (only for units with TwinDISPLAY) | FDAQ2 | FDAQ2 | FDAQ2 | |
| External measuring instrument with sensors for daylight and UV-light. Product information on demand (models HPPeco, ICHLeco/ ICHL, IPPecoplus) | B04713 | B04713 | B04713 | |
| External measuring instrument with sensors with additional measuring head for temperature and humidity measurement. Product information on demand (models HPPeco, ICHeco/ICH, ICHLeco/ICHL, IPPecoplus and ICOmed) | B04714 | B04714 | B04714 |
Services
| Model sizes | 110 | 260 | 750 | |
|---|---|---|---|---|
| Calibration at Memmert factory for a freely selectable temperature and humidity value | D00105 | D00105 | D00105 | |
| Calibration at Memmert factory for a freely selectable temperature value | D00109 | D00109 | D00109 | |
| DAkkS calibration for one free-selectable temperature value according to method C (DKD-R 5-7) | E39696 | E39696 | E39696 | |
| Extension of DAkkS calibration at Memmert factory by an additional freely selectable temperature value according to method C (DKD-R 5-7) | E39697 | E39697 | E39697 | |
| DAkkS calibration at Memmert factory for a freely selectable temperature and humidity value according to method C (DKD-R 5-7) | E48847 | E48847 | E48847 | |
| Extension of DAkkS calibration at Memmert factory by an additional freely selectable temperature and humidity value according to method C (DKD-R 5-7) | E48848 | E48848 | E48848 | |
| IQ document with device-specific works test data, OQ/PQ check list as support for validation by customer | D00124 | D00124 | D00124 | |
| IQ/OQ document with device-specific works test data, including temperature distribution survey with 9 temperature measuring points (size 30) and 27 temperature measuring points (sizes 55 - 1060) at Memmert factory for a freely selectable temperature value according to DIN12880:2007-05 (PQ check list as support for validation by customer) | D00127 | D00127 | D00127 | |
| IQ/OQ document with device-specific works test data for one free-selectable temperature and humidity value, incl. temperature distribution survey at Memmert for 27 measuring points (26 measuring points on model HPP1400) to DIN 12880:2007-05, PQ check list as support for validation by customer (models HPP and ICH). | D00136 | D00136 | D00136 | |
| IQ/OQ document with device-specific works test data, including temperature distribution survey with 27 temperature measuring points, 1 humidity measuring point and 1 light intensity measuring point in centre of usable space at Memmert factory for a freely selectable temperature, humidity and light intensity value according to DIN12880:2007-05 (PQ check list as support for validation by customer) (model ICHLeco/ICHL) | D00137 | D00137 | D00137 | |
| Extension of IQ/OQ document at Memmert factory by an additional freely selectable temperature value | D49121 | D49121 | D49121 | |
| Extension of IQ/OQ document at Memmert factory by an additional freely selectable temperature and humidity value | D49122 | D49122 | D49122 | |
| Extension of IQ/OQ document at Memmert factory by an additional freely selectable temperature, humidity and light intensity value | D49125 | D49125 | D49125 | |
| Short training on the handling and use of the device on site (outside Germany price on request) | S49128 | S49128 | S49128 | |
| Calibration on site for a freely selectable temperature value (travel costs are not included yet) | S00205 | S00205 | S00205 | |
| Calibration on site for a freely selectable temperature and humidity value (travel costs are not included yet) | S00207 | S00207 | S00207 | |
| Extension of calibration on site by an additional freely selectable temperature value | S00215 | S00215 | S00215 | |
| Extension of calibration on site by an additional freely selectable temperature and humidity value | S00216 | S00216 | S00216 | |
| DAkkS calibration on site for a freely selectable temperature value according to method C (DKD-R 5-7) (travel costs are not included yet) | S00360 | S00360 | S00360 | |
| DAkkS calibration on site for a freely selectable temperature and humidity value according to method C (DKD-R 5-7) (travel costs are not included yet) | S00365 | S00365 | S00365 | |
| IQ/OQ qualification on site including temperature distribution survey with 27 temperature measuring points for a freely selectable temperature value according to DIN12880:2007-05 (travel costs are not included yet) | DLQ100 | DLQ100 | DLQ100 | |
| IQ/OQ qualification on site including temperature distribution survey with 27 temperature measuring points and 1 humidity measuring point in centre of usable space for a freely selectable temperature and humidity value according to DIN12880:2007-05 (travel costs are not included yet) | DLQ101 | DLQ101 | DLQ101 | |
| OQ requalification on site including temperature distribution survey with 27 temperature measuring points for a freely selectable temperature value according to DIN12880:2007-05 (travel costs are not included yet) | DLQ100R | DLQ100R | DLQ100R | |
| OQ requalification on site including temperature distribution survey with 27 temperature measuring points and 1 humidity measuring point in centre of usable space for a freely selectable temperature and humidity value according to DIN12880:2007-05 (travel costs are not included yet) | DLQ101R | DLQ101R | DLQ101R | |
| Extension of IQ/OQ qualification or OQ requalification on site by an additional freely selectable temperature value | DLQ100A | DLQ100A | DLQ100A | |
| Extension of IQ/OQ qualification or OQ requalification on site by an additional freely selectable temperature and humidity value | DLQ101A | DLQ101A | DLQ101A | |
| PQ qualification on site (travel costs are not included yet) | DLQ200 | DLQ200 | DLQ200 | |
| Maintenance on site ICH/ ICHeco according to Memmert maintenance plan (available on request) (travel costs are not included yet) | S00322 | S00322 | S00322 | |
| Maintenance contract on site ICH/ ICHeco according to Memmert maintenance plan (available on request), minimum duration 3 years (travel costs are not included yet) | S00322J | S00322J | S00322J |
